FINE AGGREGATE ( NATURAL AND CRUSHED SAND)

Know More About Test

Aggregate most of which pass through 4.75 mm IS sieve is known as fine aggregate. Fine aggregate shall consists of natural sand, crushed stone sand, crushed gravel sand stone dust or arable dust, fly ash and broken brick (burnt clay).

It shall be hard, durable, chemically inert, clean and free from adherent coatings, organic matter etc. and shall not contain any appreciable amount of clay balls or pellets and harmful impurities e.g. iron pyrites, alkalis, salts, coal, mica, shale or similar laminated materials in such form or in such quantities as to cause corrosion of metal or affect adversely the strength, the durability or the appearance of mortar, plaster or concrete. The sum of the percentages of all deleterious material shall not exceed 5%. Fine aggregate must be checked for organic impurities such as decayed vegetation humps, coal dust etc.

Sr No.
Particulars
Sample Size required
Minimum Time Reuqured
Tests As Per Indian Standard
1
Sieve analysis and Fineness
Min 5Kg
01 Day
IS 2386 & IS 383
2
Material finer than 75 Micron
Min 5Kg
01 Day
IS 2386 & IS 383
3
% silt by Volume ( only Natural Sand)
Min 5Kg
01 Day
CPWD Speci.Vol. I
4
Specific gravity and water absorption
Min 5Kg
03 Days
IS 2386 & IS 383
5
Bulk density
Min 8Kg
01 Day
IS 2386 & IS 383
6
Moisture Content
Min 5Kg
01 Day
IS 2386 & IS 383
7
Bulking ( Natural Sand)
Min 5Kg
01 Day
IS 2386 & IS 383

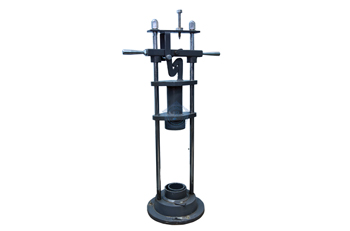

Some Of Our Testing Instruments
